The Role of Gas-Liquid Separators in Air Conditioning Systems

Gas-liquid separators are essential components in air conditioning and refrigeration systems. Their primary function is to ensure the efficient operation of compressors and maintain system stability by separating gaseous and liquid refrigerants. This separation helps prevent liquid slugging, protects the compressor, and optimizes refrigerant flow. Additionally, gas-liquid separators store excess liquid refrigerant, preventing oil dilution and thereby enhancing overall system efficiency. Proper selection and installation of gas-liquid separators are crucial for optimal system performance. This article will explore the main functions, working principles, installation requirements, and types of gas-liquid separators to help you better understand and utilize this key component.

Main Functions of Gas-Liquid Separators


Gas-liquid separators play a critical role in air conditioning and refrigeration systems. Their key functions are shown in the following aspects.

1. Protection of Compressor


When liquid refrigerant flows through the suction line, it can impact the compressor due to the incompressibility of the liquid, a phenomenon known as liquid slugging. Liquid slugging can cause mechanical wear on the compressor and potentially damage other system components. The gas-liquid separator's role is to separate the liquid refrigerant from the mixed gas stream, ensuring that only gaseous refrigerant enters the compressor. This prevents liquid slugging and protects the compressor's lifespan and performance.

2. Storage Function


Beyond separating gases from liquids, the gas-liquid separator also functions as a storage unit. It can store a certain amount of liquid refrigerant, which is crucial for regulating refrigerant flow and handling load variations during system operation. The storage function helps prevent excessive liquid refrigerant from entering the compressor, thereby avoiding the dilution of the lubricating oil. Gas-liquid separators are often referred to as low-pressure storage units, in contrast to high-pressure storage units typically installed on the high-pressure liquid line after the condenser, primarily for liquid storage and preventing gaseous refrigerant and non-condensable gases from entering the low-pressure side.

3. Refrigerant Oil Return


During the gas-liquid separation process, the gas-liquid separator also separates and collects refrigerant oil at its bottom. To ensure the smooth return of refrigerant oil to the compressor, the bottom and outlet pipes of the separator usually have oil return filters. This setup helps prevent compressor failure due to oil deficiency and ensures the system operates normally.

Working Principle of Gas-Liquid Separators

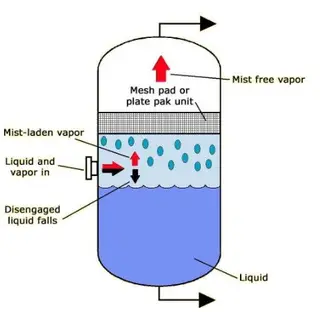

Gas-liquid separators utilize gravity to achieve the separation of gases and liquids. The process is as follows:
Inlet: The gas-liquid mixed refrigerant enters the separator through the inlet pipe.
Separation: Due to the higher density of liquid refrigerant compared to gas, the liquid settles at the bottom under gravity, while the gaseous refrigerant rises to the top.
Discharge: Gaseous refrigerant is expelled from the top of the separator and sent to the compressor, while liquid refrigerant accumulates at the bottom. The refrigerant oil is directed back to the compressor through the oil return filters to ensure adequate lubrication.

Installation Considerations


Proper installation of gas-liquid separators is key to ensuring efficient operation and system stability. Key installation considerations are as follows.

1. Installation Location


The gas-liquid separator should be installed in the suction line between the evaporator and compressor, as close to the compressor as possible to minimize pressure loss and reduce the risk of liquid slugging. In heat pump systems equipped with a four-way valve, the separator should be placed between the four-way valve and the compressor. If a filter is already installed in the suction line, it should be positioned between the gas-liquid separator and the compressor to ensure that filtered gas enters the compressor.

2. Pipe Connections


During installation, ensure that the pipe from the evaporator is connected to the Inlet side, and the Outlet side is connected to the compressor's suction port. The pipe diameters must match the system requirements to minimize pressure loss and ensure stable flow.

3. Capacity Selection


When selecting a gas-liquid separator, consider the amount of refrigerant in the system. The capacity of the separator should not be less than 50% of the system's refrigerant charge, especially in heat pump systems. Inadequate capacity may result in ineffective separation and storage of refrigerant, affecting the overall system performance.

4. Installation Orientation


To ensure proper operation, the gas-liquid separator must be installed in an upright and vertical position. This orientation allows liquid refrigerant to settle at the bottom, preventing liquid accumulation issues during system operation.

Separation Methods in Gas-Liquid Separators


Gas-liquid separators utilize several separation methods, each suited to different applications and design requirements:
Gravity Settling: Utilizes the density difference between gas and liquid to allow the liquid to settle at the bottom under gravity. This is a simple and commonly used method.
Baffle Separation: Uses baffles or deflectors to alter the flow direction, separating the liquid from the gas. Suitable for medium flow rate applications.
Centrifugal Separation: Employs centrifugal force to separate liquids and gases, effective in high flow rate applications. It efficiently separates mixtures of different densities.
Mesh Separation: Uses mesh filters to remove the liquid portion from the gas, suitable for separating larger solid particles.
Ultrafiltration: Utilizes ultrafiltration membranes for high-precision separation, suitable for industries such as food and pharmaceuticals.
Packing Separation: Uses porous packing material to achieve separation based on porosity, suitable for complex mixtures.

Gas-liquid separators play a crucial role in air conditioning and refrigeration systems. Their primary functions include protecting the compressor, storing liquid refrigerant, and maintaining system stability. Effective gas-liquid separation prevents liquid slugging, extends equipment lifespan, and optimizes refrigerant flow. Proper selection and installation of gas-liquid separators are essential for long-term system stability and efficiency. Understanding and applying this knowledge ensures efficient and reliable system operation, enhancing overall performance and economic benefits.
