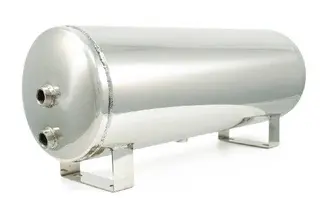

Structure and Principle of Stainless Steel Air Storage Tanks


When it comes to critical equipment for gas storage and supply, stainless steel air storage tanks are undoubtedly indispensable. Renowned for their excellent corrosion resistance and sealing performance, these air storage tanks are widely used across multiple industries. They not only safely store liquid and gaseous gases but also ensure stable gas supply under varying operational conditions through precise liquid level control and pressure management systems. Equipped with safety valves and efficient control systems, they further enhance operational safety and reliability, making them integral to modern production and research activities. Below, we will delve into their internal structure, operational principles, and relevant control systems.


Internal Structure of Air Storage Tank


The internal structure of a stainless steel air storage tank is designed with precision to ensure efficient storage and controlled distribution of compressed air. Here is a detailed breakdown of its internal components and their functions.

1. Liquid Area: Located at the tank's bottom, this section is designated for storing and managing liquids used in conjunction with air compressors, such as lubricants or water condensate. It includes a liquid level control mechanism to regulate and maintain the appropriate liquid level within the tank.

2. Gas Area: Positioned at the tank's top, this area stores compressed air. Compressed air enters through an inlet and is distributed to various applications through an outlet. Safety valves are integrated into both the inlet and outlet to prevent excessive pressure buildup, ensuring operational safety.


The Operational Principle


The functionality of stainless steel air storage tanks revolves around the efficient management of compressed air.

1. Air Compression and Pressure Control: As air is compressed and introduced into the tank, the inlet valve closes to contain the air, gradually increasing internal pressure.
2. Safety Valve for Pressure Relief: Once the internal air pressure reaches a preset safe threshold, the safety valve activates to release excess air into the atmosphere, maintaining stable pressure levels within the tank.
3. Air Distribution: When compressed air is required for operational use, opening the outlet valve allows the air to flow out of the tank and into the designated systems or tools for utilization.


Control Systems


Control systems in stainless steel air storage tanks are critical for maintaining safe and efficient operation, ensuring that compressed air is stored and distributed effectively. These systems involve various components and mechanisms to monitor, regulate, and protect both the tank and the compressed air it contains.


• Liquid Level Control: Monitors and adjusts the liquid level in the tank to prevent overflow or depletion, maintaining optimal conditions for air compression.
• Pressure Monitoring and Safety: Constantly monitors internal air pressure. If pressure exceeds safe limits, the pressure control system activates the safety valve to prevent over-pressurization and potential hazards.
• Temperature Regulation: Manages and adjusts the temperature of the tank's contents, ensuring optimal conditions for air compression and storage.


In summary, stainless steel air storage tanks are essential components in industrial and commercial settings, providing secure and efficient storage solutions for compressed air. Their robust construction and sophisticated control systems ensure reliability, safety, and longevity, supporting a wide range of applications from manufacturing and construction to healthcare and beyond.
