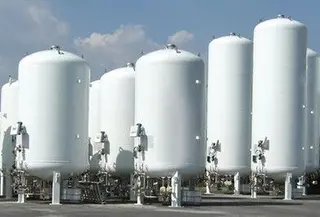

Liquid nitrogen storage tanks are specialized cryogenic containers designed for storing liquid nitrogen, widely used in various fields such as industry, scientific research, healthcare, and food processing. While liquid nitrogen provides efficient cooling and gas protection due to its extremely low temperature, inertness, and asphyxiating properties, it also poses certain safety hazards. The use and management of liquid nitrogen storage tanks require heightened attention to their potential dangers to ensure operational safety and the long-term stable operation of the equipment.
Basic Properties of Liquid Nitrogen and Storage Tank Requirements
Liquid nitrogen is the liquid form of nitrogen at -196.56°C. Since nitrogen constitutes over 78% of the atmosphere by volume, the production of liquid nitrogen is substantial in industrial applications. Liquid nitrogen is colorless, odorless, non-corrosive, and non-flammable, but its cryogenic nature poses a risk of frostbite. When liquid nitrogen escapes from the storage tank and vaporizes, it expands to 696 times its original liquid volume, forming a low-temperature gas. Therefore, strict control of temperature and pressure is essential during storage and use to prevent accidental leaks and overpressure explosions.
Liquid nitrogen storage tanks are typically designed as cryogenic liquid containers with double-layer structures and vacuum insulation materials to maintain the low temperature of the liquid nitrogen. The tank surface must have an effective insulation layer to prevent temperature rise and associated hazards.
Safety Risks of Liquid Nitrogen Storage Tanks
During the use and storage of liquid nitrogen storage tanks, various safety risks may arise, including frostbite, asphyxiation, overpressure explosions, and more. Below are the primary safety hazards associated with liquid nitrogen storage tanks.
1. Frostbite
The extremely low temperature of liquid nitrogen can cause frostbite to human tissue upon direct contact with the liquid or its cooled surfaces. Splashes or skin contact during operations can lead to rapid freezing of local tissues, causing irreversible damage. Contact with eyes or skin may result in blindness or severe skin damage. Therefore, operators must wear specialized protective equipment, such as cryogenic-resistant gloves and goggles, to avoid direct contact with liquid nitrogen or cooled objects.
2. Asphyxiation
Liquid nitrogen is asphyxiating. When it vaporizes, nitrogen gas displaces oxygen, reducing oxygen concentration in the air and potentially causing suffocation. In confined spaces where liquid nitrogen is stored, filled, or unloaded, inadequate ventilation can lead to oxygen deficiency. Operators must ensure proper ventilation in the working environment to prevent asphyxiation accidents caused by nitrogen gas accumulation.
3. Overpressure Explosion
As pressure vessels, liquid nitrogen storage tanks are at risk of overpressure explosions if the internal temperature rises, causing rapid vaporization of liquid nitrogen and a significant increase in gas volume. Safety valves, rupture discs, and other safety devices must be installed during the design and manufacturing of the tanks to release pressure in case of overpressure. However, if these safety devices fail or are not regularly inspected, the risk of tank explosions increases significantly.
4. Equipment Failure and Leakage
If the insulation system of a liquid nitrogen storage tank fails, frost or ice may form on the tank surface, posing a frostbite risk upon contact. Additionally, leaks in pipelines, valves, or other equipment can lead to fires, explosions, or other severe accidents. Long-term lack of maintenance may result in leaks due to aging or corrosion, creating potential hazards. Therefore, regular inspection and maintenance of liquid nitrogen storage tanks are essential to ensure their proper operation.
5. External Environmental Risks
Environmental conditions in the area where liquid nitrogen storage tanks are located can also impact their safety. Severe weather, such as typhoons or strong winds, may damage tank facilities, increasing the risk of secondary accidents. Furthermore, blocked fire access routes in the tank area can hinder emergency rescue operations, leading to catastrophic consequences. Thus, safety facilities in the tank area must be regularly inspected, kept clear, and reinforced as necessary.
Safety Management Measures for Liquid Nitrogen Storage Tanks
Effective safety management of liquid nitrogen storage tanks requires comprehensive measures, including equipment inspection, operational procedures, and emergency preparedness.
1. Regular Inspection and Maintenance
Liquid nitrogen storage tanks and their supporting facilities should undergo regular inspections, including pressure testing, leak detection, temperature control, and insulation layer checks. Safety valves, rupture discs, pipeline connections, and other equipment must be maintained in good condition to prevent malfunctions or failures. Special attention should be paid to the insulation performance, sealing, and exhaust system effectiveness to ensure the tank can withstand high pressure and low temperature challenges.
2. Strict Operational Procedures
Operations involving liquid nitrogen storage tanks must follow strict safety protocols. All operators should receive specialized training to understand the basic properties of liquid nitrogen, usage methods, and emergency response measures. During filling, unloading, or transferring liquid nitrogen, operators must wear appropriate protective gear, such as cryogenic gloves, goggles, and low-temperature-resistant clothing, to avoid direct contact with liquid nitrogen or cooled objects.
3. Safety Facility Construction and Maintenance
Safety facilities, such as safety valves, rupture discs, and pressure relief pipelines, must be regularly inspected and maintained. Effective lightning protection systems should be installed in the tank area to prevent fires or explosions caused by lightning strikes. Clear safety signs and warning labels should be placed around the tanks to ensure operators remain vigilant and avoid accidents caused by operational errors.
4. Emergency Plans and Personnel Training
Detailed emergency plans must be established for liquid nitrogen storage and operational areas to ensure prompt response in case of accidents. Regular emergency drills should be conducted to familiarize operators with emergency procedures and equip them with the skills to handle leaks, overpressure, fires, and other emergencies. In the event of an accident, staff should be able to quickly assess the situation and take appropriate protective measures to prevent escalation.
5. Safety Isolation and Facility Protection
Safety isolation measures should be implemented around the tank area to prevent unauthorized personnel from entering. The infrastructure supporting the tanks should be regularly inspected to avoid equipment damage due to instability. Regular reinforcement of tank equipment is necessary to prevent damage from external forces, such as typhoons or earthquakes.
Conclusion
Liquid nitrogen storage tanks play a vital role in industrial production, medical applications, and scientific research. However, their potential safety risks cannot be overlooked. Through rigorous equipment management, well-defined operational procedures, effective safety facility construction, and timely emergency preparedness, the safety of liquid nitrogen storage tanks can be significantly enhanced. Only by ensuring safety can liquid nitrogen storage tanks continue to deliver their value across various industries.
