Plate Heat Exchanger Gasket Replacement and Maintenance
On this page

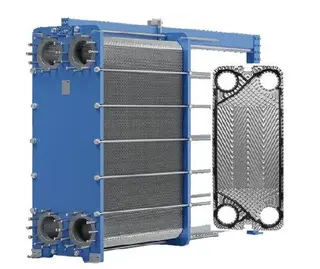

Plate heat exchangers are widely used in industrial production, with their core function being the efficient transfer of heat between different fluids. A critical component of these exchangers is the gasket, which plays an essential role in sealing and preventing fluid leakage, ensuring the system operates safely and efficiently. This article provides an in-depth exploration of the function of plate heat exchanger gaskets, criteria for determining when to replace them, and the specific steps involved in gasket replacement.
Function and Material Requirements of Gaskets
The gaskets in a plate heat exchanger are located at the edges of each heat transfer plate. Their primary function is to seal the gaps between plates, preventing the leakage of heat exchange media. Given that these exchangers often operate under high temperatures, high pressures, and sometimes corrosive environments, the gasket material must possess excellent elasticity, temperature resistance, and corrosion resistance. Common gasket materials include Viton (fluoroelastomer), EPDM (ethylene propylene diene monomer), and NBR (nitrile butadiene rubber), all of which can maintain stable sealing performance under various working conditions.
Criteria for Gasket Replacement
Regular inspection and timely replacement of gaskets are crucial to ensuring the long-term stability of plate heat exchangers. Below are some key methods to determine whether a gasket needs replacement.
1. Fluid Leakage
Fluid leakage is a direct indicator of gasket failure. If any leaks are detected, it typically indicates that the gasket has aged or been damaged, and immediate replacement is necessary.
2. Pressure Testing
Regular pressure testing of the heat exchanger is an important way to assess gasket sealing performance. A drop in pressure during testing suggests a decline in gasket integrity, signaling the need for replacement.
3. Routine Maintenance Checks
During scheduled maintenance, it is recommended to disassemble the heat exchanger and inspect the gaskets. If hardening, cracks, deformation, or corrosion are observed, the gasket has likely failed and should be replaced.
4. Operating Time and Expected Lifespan
Each gasket type has an expected lifespan based on its material and operating environment. When the operating time approaches or exceeds this lifespan, proactive replacement is advised to prevent equipment shutdowns or damage due to gasket failure.
5. Parameter Monitoring
Monitoring parameters such as inlet and outlet temperatures and pressures during heat exchanger operation can reveal abnormal changes, which might indicate a decline in gasket sealing performance, necessitating inspection and possible replacement.
Steps for Replacing Gaskets
Proper and meticulous execution is vital when replacing PHE gaskets. The following are detailed steps for gasket replacement.
1. Preparation
Drain the Equipment: Before beginning the replacement, ensure the heat exchanger is fully drained, and all internal pressure is released to guarantee safety.
Prepare Tools: Required tools include wrenches, screwdrivers, cleaning agents, adhesives, etc. Additionally, new gaskets matching the original material and dimensions should be on hand.
2. Disassembly of the Heat Exchanger
Remove Fastening Bolts: Begin by removing the fastening bolts of the heat exchanger and carefully opening the unit.
Extract the Plates: While removing the plates one by one, record the order and orientation of each plate to ensure correct reassembly.
Inspect the Plates: Examine the plates for any damage, scaling, or corrosion, and clean and maintain them as necessary.
3. Cleaning and Installing New Gaskets
Clean the Gasket Groove: Use acetone, MEK, or another suitable solvent to remove residual adhesive and debris from the gasket groove, ensuring it is clean and undamaged.
Apply Adhesive: Evenly apply adhesive in the gasket groove, ensuring full coverage of the groove bottom and sidewalls.
Install the New Gasket: Carefully place the new gasket into the groove on the plate, ensuring correct positioning without misalignment or lifting. The plate with the new gasket should be placed on a flat, cool, and ventilated area to allow the adhesive to cure fully.
4. Reassembly of the Heat Exchanger
Assemble the Plates in Order: Reassemble the plates into the heat exchanger in the same order and orientation as recorded earlier.
Tighten the Bolts: Install the fastening bolts and tighten them evenly, ensuring the gaskets between the plates are uniformly compressed to avoid leakage due to uneven pressure.
5. Pressure Testing and Equipment Adjustment
Leak Test: After reassembly, perform a leak test to ensure no leakage occurs. If leakage is detected, further inspection, gasket adjustment, or reassembly may be required.
Start-Up and Monitoring: Once the leak test passes, start up the equipment and closely monitor its operation to ensure normal performance without anomalies.
Post-Replacement Maintenance Recommendations
Following gasket replacement, certain maintenance practices are recommended to ensure long-term stable operation of the plate heat exchanger.
1. Regular Inspections
Even after gasket replacement, it is essential to regularly check the operation of the heat exchanger, particularly the sealing performance of the gaskets.
2. Keep the System Clean
During operation, maintain cleanliness within the heat exchanger to prevent the accumulation of debris and deposits that could affect gasket sealing performance.
3. Monitor Environmental Conditions
The lifespan of gaskets is closely related to environmental conditions. Select gasket materials appropriately based on actual working conditions to extend their lifespan.
In conclusion, the proper use and regular replacement of gaskets in plate heat exchangers are crucial to the stable operation of the equipment. By understanding the role of gaskets, knowing when to replace them, and strictly following replacement procedures, users can effectively avoid production interruptions and financial losses due to gasket failure. Regular maintenance and inspections not only extend the life of the heat exchanger but also enhance the overall efficiency of the system, ensuring a safe and reliable production process. Therefore, paying attention to the management of PHE gaskets will bring long-term benefits and security to enterprises.
