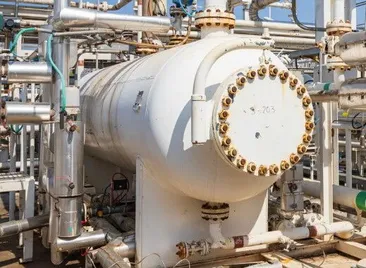

Pressure vessels are widely used in industries such as petrochemical, chemical, energy, and food processing. They are closed devices designed to withstand internal or external pressure. The safety, reliability, and stability of pressure vessels directly impact the normal operation of entire production systems, making strict adherence to various standards and regulations essential. This article will delve into the operating conditions of pressure vessels, analyzing key factors such as pressure, temperature, medium, material selection, and safety design. The goal is to help readers comprehensively understand the operational requirements and safety management of pressure vessels.
Sources of Pressure in Pressure Vessels
Pressure in a vessel can primarily come from two sources: external pressure and internal pressure. The design requirements and usage methods of pressure vessels vary depending on the pressure source.
1. External Pressure
External pressure refers to pressure exerted on the outer surface of the vessel. This typically occurs when atmospheric pressure changes or when external gases flow into the vessel. External pressure can lead to deformation or even rupture of the vessel, particularly when the pressure is unevenly distributed across the container. Therefore, the design must fully consider the effects of external pressure to prevent instability or rupture under varying environmental conditions.
Vessels subjected to external pressure are called vacuum vessels and are commonly used in applications that require the ability to withstand negative pressure, such as vacuum pumps or steam condensers. Due to the relatively higher external pressure, these vessels are designed with stronger materials and reinforcement to ensure stability under negative pressure conditions.
2. Internal Pressure
Internal pressure refers to pressure generated by the medium inside the vessel, typically resulting from changes in the volume of gases, liquids, or steam. Internal pressure is more common and is the primary factor in pressure vessel design. As the volume of the medium changes or the temperature increases, the internal pressure of the vessel may rise, presenting challenges to the vessel's strength and sealing capabilities. Pressure vessels must be able to withstand a certain range of internal pressure, with a sufficient safety margin designed to prevent explosions or ruptures.
The internal pressure of a pressure vessel is usually represented by the working pressure, which is the maximum pressure the vessel can reach under normal operating conditions. The design pressure is typically higher than the working pressure to ensure the vessel can operate safely.
Working Pressure vs. Design Pressure
Both working pressure and design pressure are critical parameters in pressure vessel operation, influencing the vessel's structural design, material selection, and safety.
1. Working Pressure
Working pressure refers to the maximum pressure the vessel's medium can exert during normal operation. In most cases, working pressure is considered the pressure that may appear at the top of the vessel. It is a key reference for design and material selection, as it dictates the vessel's maximum load capacity. Working pressure is typically monitored during operation, and if pressure exceeds this limit, the vessel's safety is compromised, requiring immediate measures to reduce pressure.
Working pressure is closely related to the vessel's size, materials, and operating environment. Different industries and usage conditions have varying standards for working pressure. For example, the working pressure for a natural gas storage tank differs from that of a storage tank used in fertilizer production.
2. Design Pressure
Design pressure refers to the pressure value used to determine the vessel's wall thickness, supporting structure, and sealing devices during the design phase. Design pressure is typically higher than working pressure to ensure safe operation even under extreme conditions. It is determined by considering factors such as the vessel's operating environment, the properties of the medium, and temperature, while also accounting for potential pressure fluctuations during operation.
The design pressure must meet the following requirements:
Safety Margin: The design pressure should exceed the working pressure to account for potential overpressure scenarios.
Static Liquid Column Pressure: In some cases, the static pressure from a liquid column may exert additional pressure on the vessel. If the static pressure exceeds 5% of the design pressure, it must be factored into the design calculations.
The design pressure is typically marked on the nameplate of the vessel to inform users of the vessel's design standards and operational limitations.
Operating Temperature vs. Design Temperature
Temperature is another crucial operating parameter for pressure vessels. Temperature affects both the material properties of the vessel and the nature of the medium inside, necessitating strict control.
1. Operating Temperature
Operating temperature refers to the temperature that the medium inside the pressure vessel can reach during normal operation. The operating temperature should remain within the range that the vessel's materials can tolerate, preventing the vessel from cracking or failing due to excessively high or low temperatures. High temperatures may lead to thermal expansion, softening, or fatigue of the material, while low temperatures can increase the brittleness of the material, leading to a higher risk of fracture.
The operating temperature is typically influenced by the medium's properties, the vessel's design requirements, and the environmental conditions. In specialized applications, such as cryogenic gas storage or high-temperature reactors, temperature control is more stringent, and additional insulation or cooling systems may be required.
2. Design Temperature
Design temperature is the temperature selected during the design process to ensure the stability and strength of the vessel materials at operating temperatures. The design temperature is usually set higher than the operating temperature to ensure the vessel performs well under extreme conditions.
Design temperature needs to consider several factors:
Metal Temperature: This refers to the average temperature along the thickness of the vessel's pressure components. The design temperature should not exceed the allowable operating temperature of the material to prevent degradation due to overheating.
Low-Temperature Design: For low-temperature vessels, the design temperature must ensure the vessel maintains good mechanical properties to prevent brittle fracture.
The design temperature is influenced by the materials used, the properties of the medium, and the operating environment, and it must ensure the vessel can operate reliably under temperature fluctuations.
Properties of the Medium in Pressure Vessels
The type and properties of the medium inside the pressure vessel directly affect the vessel's design and operating conditions. The medium can be a gas, liquid, or solid, and different mediums impose various requirements on the materials, structure, and safety of the vessel.
1. Flammable Mediums
Flammable media, such as methylamine, ethane, and hydrogen, are gases that can explode when mixed with air. These media present significant explosion risks and require pressure vessels to have explosion-proof designs. High-strength materials and reliable sealing structures must be used to prevent leaks or explosions. The explosion limits for flammable media depend on the lower and upper flammability limits, which must be considered during design to ensure safety.
2. Corrosive Mediums
Corrosive media, such as sulfuric acid, chlorine gas, and ammonia, can corrode the vessel's materials. Prolonged exposure to these media can significantly reduce the vessel's strength and sealing ability, increasing the risk of leakage or rupture. To resist corrosion, pressure vessels are typically made from corrosion-resistant materials, such as stainless steel or alloy steel, and may also be internally lined or coated.
3. Toxic Mediums
Toxic media, such as poisonous gases and chemicals, can pose severe health or environmental hazards. Pressure vessels handling toxic media must have high sealing capabilities and leak-resistant features. Additionally, the design should address measures to mitigate environmental risks, such as installing exhaust gas treatment systems and enhancing monitoring capabilities.
Material Selection and Corrosion Protection
Choosing the appropriate materials is crucial in pressure vessel design, especially in high-temperature, high-pressure, or corrosive environments. Proper material selection enhances the vessel's safety and durability.
Common materials used in pressure vessels include:
Carbon Steel: Suitable for general environments and non-corrosive media, carbon steel has high strength and is easy to process, making it a widely used material.
Stainless Steel: Ideal for corrosive media, stainless steel offers excellent corrosion resistance and high-temperature performance. It is commonly used in industries like chemical processing and food production.
Alloy Steel: Designed for high-temperature and high-pressure environments, alloy steel is particularly suitable for the petroleum and natural gas industries.
Safety Design and Operating Requirements
The safety of pressure vessels is central to their design and operation. In addition to material and structural considerations, pressure vessels must be equipped with various safety devices to prevent failures in abnormal situations.
1. Safety Valves
Safety valves are essential safety devices in pressure vessels. They automatically open to release pressure when the internal pressure exceeds the set limit, preventing the vessel from rupturing. Safety valves must be accurately set based on the vessel's design and working pressure to ensure they function when needed.
2. Regular Inspection and Maintenance
Regular inspection and maintenance are crucial for ensuring the safe operation of pressure vessels. Common inspection items include pressure testing, sealing checks, and gauge calibration. Routine inspections help identify potential hazards and extend the vessel's lifespan.
3. Operating Procedures
Operators must strictly adhere to the operating procedures for pressure vessels. Dangerous operations, such as over-pressurization or overheating, should be avoided to ensure the vessel operates within the specified safety limits. Operators should also receive regular safety training to understand how to handle emergencies and faults.
Conclusion
The operating conditions of pressure vessels encompass various aspects, including pressure, temperature, medium characteristics, safety design, and material selection. Proper design and strict operating procedures are essential for ensuring the safe and reliable operation of pressure vessels. By following relevant standards and regulations, conducting regular inspections, and maintaining the vessels, the risk of accidents can be minimized, ensuring production safety.
