Liquid Oxygen Storage Tank Management and Safety Guidelines
On this page

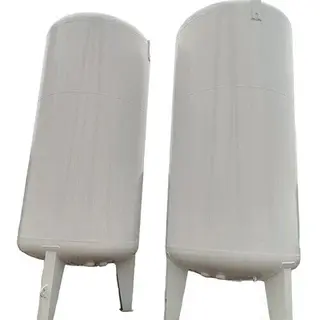

A liquid oxygen storage tank is a critical component engineered specifically for the safe and efficient storage of liquid oxygen. Its design must adhere to stringent requirements to ensure reliable performance under the extreme conditions associated with liquid oxygen. These requirements for these storage tanks include material selection, structural integrity, and safety features to handle the cryogenic temperatures and high pressures involved.
Design Requirements for Liquid Oxygen Storage Tanks
A liquid oxygen storage tank is a specialized container designed for storing liquid oxygen. Its design must meet the following requirements.
1. Materials and Structure
High-Strength Materials: Liquid oxygen storage tanks must be constructed from high-strength materials such as stainless steel, aluminum alloys, or other cryogenic-resistant materials to withstand the extremely low temperatures of liquid oxygen (-183°C) and high storage pressures. These materials must also exhibit excellent corrosion resistance and impact resistance to prevent brittle fractures under low-temperature conditions.
Vacuum Insulation: To minimize heat transfer, tanks are typically equipped with a vacuum insulation layer or other high-efficiency thermal insulation materials. This insulation effectively reduces the evaporation rate of liquid oxygen, maintaining its low temperature.
Sealing Devices: Tanks should be fitted with high-quality sealing devices, including gaskets, valves, and welded joints, to prevent leaks during storage and transport. Regular inspection and maintenance of these sealing devices are necessary to prevent aging and failure.
2. Design Standards
Pressure Vessel Standards: The tank design must adhere to relevant pressure vessel standards, such as ASME or API, to ensure the vessel's safety and stability under high-pressure conditions.
Safety Valves: Tanks should be equipped with safety valves or pressure relief devices to prevent explosions or damage caused by excessive pressure.
Storage Environment Control
The storage environment for liquid oxygen directly impacts its safety and preservation. Key environmental control measures include the following.
1. Temperature Control
Constant Temperature System: Liquid oxygen storage tanks should have an advanced temperature control system to maintain the surrounding environment below the boiling point of liquid oxygen (-183°C). This system could be a refrigeration unit or insulation system to prevent oxygen vaporization and pressure increase.
Temperature Monitoring: Install temperature sensors and monitoring systems to continuously track temperature changes within the tank, with alarms set up to address any anomalies.
2. Ventilation and Humidity Control
Ventilation Facilities: Tanks should be placed in well-ventilated areas to expel oxygen generated from the vaporization of liquid oxygen, reducing the risk of high oxygen concentrations and associated fire and explosion hazards.
Humidity Management: The humidity in the storage environment should be controlled to prevent frost or ice formation. High humidity can lead to frost on the tank's surface, impacting the equipment's performance.
3. Fire and Explosion Prevention
No Open Flames: The area around the tank should be strictly free from open flames, welding, and other high-temperature activities. Due to the strong oxidizing nature of liquid oxygen, contact with combustible materials can lead to severe fires and explosions.
Safety Isolation: Establish clear safety isolation zones around the tank, with prominent warning signs, restricting access to unauthorized personnel, and implementing necessary protective measures to mitigate risks.
Equipment Maintenance
Maintaining liquid oxygen storage tanks is crucial for safe and reliable operation and involves the following aspects.
1. Regular Inspections
Tank Inspection: Regularly inspect the tank's surface for cracks, deformation, or corrosion. Check weld joints and sealing devices to ensure no leaks or looseness.
Cooling System Inspection: Periodically check the cooling system’s performance, including the efficiency of refrigeration equipment, adequacy of cooling fluids, and seal integrity of pipelines.
2. System Maintenance
Cleaning and Upkeep: Regularly clean the tank and cooling system to remove accumulated dirt and ice, ensuring optimal operational efficiency.
Component Replacement: Replace aging seals, valves, and other critical components as per usage and maintenance schedules to ensure long-term stability.
Usage Management and Safety Protocols
Effective management of liquid oxygen storage tanks must adhere to strict safety protocols and operational procedures.
1. Operator Training
Professional Training: Operators should undergo comprehensive training to understand the properties of liquid oxygen, tank operation procedures, and emergency response measures. Training should cover handling, storage, and leak management.
Emergency Drills: Conduct regular emergency drills simulating liquid oxygen leaks or other emergencies to ensure operators can respond effectively.
2. Safety Operating Procedures
Operational Procedures: Develop and strictly follow operating procedures for handling, storing, and leak management of liquid oxygen. These procedures should include measures for leak prevention, accident response, and equipment maintenance.
Warning Signs: Place clear safety warning signs around the tank and its vicinity, such as “Liquid Oxygen Area” and “No Open Flames,” to alert staff to follow safety protocols.
3. Waste Disposal
Safe Disposal Measures: Classify and dispose of waste materials, such as discarded liquid oxygen containers and equipment, according to safety and environmental regulations.
Waste Handling Locations: Send waste to designated disposal sites, ensuring the process complies with environmental and safety standards.
Environmental Requirements: Adhere to environmental regulations during waste disposal to prevent contamination and ensure safe handling of waste materials.
Managing liquid oxygen storage involves various aspects, including design requirements, environmental control, equipment maintenance, and safety management. By adhering to rigorous design standards, effective environmental control measures, regular maintenance, and safety protocols, the safe storage and efficient use of liquid oxygen can be ensured, minimizing the risk of leaks and accidents.
