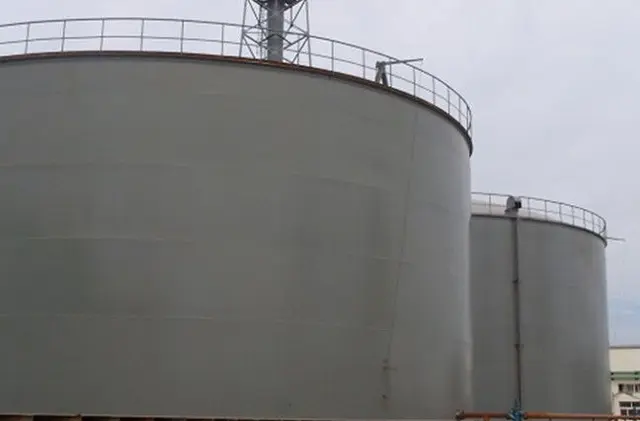

Crude oil storage tanks are essential facilities in the storage and transportation of petroleum, but they also come with significant safety risks, including fire, explosion, and leakage hazards. Crude oil itself is highly flammable and explosive, and leaks can lead to severe environmental pollution. To ensure the safe operation of crude oil storage tanks and avoid accidents, it is crucial to understand the potential risks and implement effective preventive measures. This article provides a detailed analysis of the hazards associated with crude oil storage tanks and proposes corresponding preventive measures.
Hazards of Crude Oil and Fire-Explosion Characteristics
Crude oil is a mixture of various hydrocarbon compounds, with high volatility and combustibility. Its low flashpoint and the large proportion of light hydrocarbons make crude oil storage tanks highly susceptible to fire and explosion under improper conditions.
1. Physical and Chemical Properties of Crude Oil
Crude oil primarily consists of hydrocarbons and has a low flashpoint and a narrow explosive limit range. Specifically, the explosive limit range of crude oil typically falls between 1.4% and 7.6%. This means that when the concentration of crude oil vapor in the air exceeds this range, an explosion can occur when exposed to an ignition source. A low flashpoint means that crude oil can easily vaporize into flammable gases when temperatures rise, potentially leading to fire accidents upon contact with an open flame.
The risks associated with crude oil storage tanks stem mainly from the high volatility and combustibility of crude oil. Improper liquid level management, structural cracks in the tank, or poor sealing can lead to oil leaks. Additionally, crude oil vapor is denser than air, which can cause accumulation in low-lying areas, forming explosive gas mixtures.
2. Fire and Explosion Risks
The primary risk of fire in crude oil storage tanks arises from leaks and oil spills. Once crude oil leaks from a tank, the vapor will quickly spread and mix with air to form an explosive mixture. If exposed to sparks or other ignition sources, an explosion can occur. Furthermore, in situations where a storage tank is filled with crude oil vapor, faults in equipment, static electricity buildup, welding, or cutting operations can easily trigger fires or explosions.
Causes and Types of Crude Oil Leaks
Crude oil leaks can have various causes, generally categorized as follows.
1. Equipment and Pipeline Failures
Over time, equipment and pipelines in crude oil storage tanks may suffer from aging, corrosion, fatigue, or other issues, leading to poor sealing or damage. Valves, pipeline joints, flanged connections, and areas subjected to prolonged pressure and temperature fluctuations are particularly prone to leaks.
2. Seal Failure
If the sealing components of a crude oil storage tank are not regularly maintained or are affected by external factors like high or low temperatures, humidity, or ultraviolet radiation, the sealing materials can degrade, harden, or become brittle, reducing their sealing performance. This results in oil leakage and can allow the accumulation of oil vapor, further increasing the fire and explosion risks.
3. Improper Operation
If operators do not follow operational protocols, crude oil leaks can occur. For example, improper liquid level control or malfunctioning oil recovery systems can lead to spills. The risk of leakage increases, especially when the liquid level is too high or too low.
4. External Factors
Natural disasters (such as earthquakes or typhoons) or human factors (like external impacts or fires) can damage crude oil storage tanks, leading to oil leaks. Additionally, if the foundation of the storage tank is unstable, ground subsidence can damage the tank's bottom structure and cause leakage.
5. Corrosion
Long-term use of crude oil storage tanks can lead to corrosion, particularly at the tank's bottom and oil-water interface. The water, acidic substances, and salts present in crude oil can accelerate corrosion. Corrosion not only reduces the tank's load-bearing capacity but also increases the risk of ruptures, leaks, or even explosions.
Safety Hazards and Protective Measures in Crude Oil Tank Design
To effectively prevent accidents in crude oil storage tanks, the design, construction, operation, and maintenance of the tanks must prioritize safety. During the design phase, potential hazards must be identified, and corresponding preventive measures should be implemented.
1. Tank Location and Foundation Design
The location of the storage tank is fundamental to safety design. Tanks should be placed far from residential areas, industrial zones, and busy transportation routes to minimize the impact of accidents on surrounding environments. Additionally, construction should occur in geologically stable areas with strong seismic resistance. The foundation design should comply with local geological conditions and seismic activity to ensure the stability of the tank.
Common tank foundation designs include ring wall and external ring wall structures, with anti-seismic and anti-settlement designs. Furthermore, the foundation's impermeability and corrosion resistance are critical to preventing external water sources from affecting the tank's bottom.
2. Floating Roof Design and Sealing
Floating roof tanks are widely used for crude oil storage because their design helps minimize oil vapor emissions. However, the sealing of floating roofs is crucial for safety. To prevent vapor leaks, the sealing materials and devices must be inspected regularly. Advanced roller skeleton sealing technology can significantly improve sealing performance.
The floating roof should be designed to adjust its height in response to changes in the tank's liquid level, while maintaining sufficient sealing to prevent oil vapor from leaking into the environment.
3. Internal and External Corrosion Protection
Corrosion protection on both the interior and exterior of the tank is vital, particularly at the oil-water interface and the tank's bottom. Techniques such as cathodic protection (e.g., sacrificial anodes) can effectively reduce the corrosion rate at the tank's bottom. External corrosion can be prevented using epoxy resin coatings and anti-corrosion paints.
Regular inspections and maintenance are key to ensuring the effectiveness of corrosion protection. Companies must establish appropriate inspection and maintenance schedules based on the tank's service life and environmental conditions.
4. Fire and Explosion Protection Design
Fire protection designs for crude oil storage tanks should include appropriate oil vapor recovery systems to maintain the oil vapor concentration within safe limits, thereby minimizing the risk of fire and explosion. Firebreaks and firefighting facilities should be established around the tanks, and automatic fire suppression systems should be installed.
Special attention should be given to the sealing and strength of valves, pipelines, and joints, which are vulnerable to leaks and fire hazards. Regular inspections and replacement of aging components are essential.
5. Safety Monitoring and Leak Detection
Crude oil storage tanks should be equipped with modern safety monitoring systems, including gas leak detectors, liquid level monitoring systems, and temperature and pressure sensors. Real-time monitoring of the tank’s operational status can help identify potential hazards promptly and allow for timely emergency response.
6. Operational Procedures and Staff Training
In addition to hardware improvements, operational procedures and staff training are crucial for ensuring tank safety. Operators should be familiar with safety protocols and emergency response skills. Regular safety drills should be conducted to improve employees' ability to respond effectively in the event of a fire, leak, or other emergencies.
Specific Measures and Recommendations for Preventing Accidents
To reduce the occurrence of accidents in crude oil storage tanks and ensure their safe operation, a series of effective measures must be implemented. Below are specific measures and recommendations.
1. Regular Inspections and Maintenance
Regularly inspect the tank's structure, pipelines, valves, and sealing components to ensure that the equipment remains in good condition.
External Inspections: Regularly check for corrosion or cracks on the tank's exterior, bottom, and seams, ensuring that the coating remains intact.
Internal Inspections: Inspect the tank for accumulated water, sludge, and perform cleaning and corrosion protection as needed.
Valve and Pipeline Inspections: Ensure that valves and pipelines are free from leaks and replace damaged components as necessary.
Floating Roof and Sealing Inspections: Check the condition of the floating roof's seal to ensure no vapor leaks.
2. Strict Liquid Level and Temperature Control
High liquid levels can lead to overflows, and high temperatures can increase the risk of fire and explosions.
Liquid Level Monitoring System: Install automatic liquid level monitoring systems to ensure safe liquid levels.
Temperature Monitoring: Install temperature monitoring systems to prevent excessive temperatures in the tank.
Sensor Calibration: Regularly calibrate liquid level and temperature sensors to ensure accuracy.
3. Tank Design and Technological Optimization
Proper tank design and technological upgrades can enhance safety.
Seismic Design: Ensure the tank can withstand natural disasters such as earthquakes.
Corrosion Protection Design: Use corrosion-resistant coatings and conduct regular inspections to prevent corrosion.
Overflow and Leak Protection: Install overflow pools and leak detection systems to prevent oil spills.
Safety Valves and Explosion Protection: Install safety valves and explosion protection systems to manage internal pressure.
4. Safety Monitoring and Leak Detection
Advanced monitoring and detection systems can identify potential hazards early, preventing accidents.
Gas Leak Detectors: Install leak detectors at the tank's top and sealing areas.
Temperature and Pressure Monitoring: Ensure that the temperature and pressure inside the tank remain within safe limits.
Video Surveillance Systems: Monitor the tank area in real-time to detect abnormal conditions.
Leak Detection Systems: Use leak detection systems to identify crude oil leaks promptly and trigger alarms.
Conclusion
Crude oil storage tanks are critical facilities for petroleum storage, but due to their unique physical and chemical properties, they present significant safety risks. Through scientifically sound design and construction, regular inspections and maintenance, and strict operational management, accidents can be effectively prevented, ensuring the safe operation of the tanks. Companies should establish comprehensive safety protection measures in terms of systems, technologies, and management, ensuring the safety and stability of crude oil storage tanks, thus laying the foundation for the sustainable development of the petroleum storage industry.
