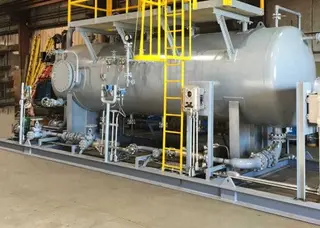

How to Operate a Three-phase Separator Properly?
On this page

In industries such as oil, natural gas, and chemicals, the three-phase separator plays a crucial role. It is a specially designed device used to separate oil, water, and gas from oil-gas-water mixtures, widely applied in processes like oilfield production, natural gas processing, and petroleum refining. Through physical and mechanical processes, the three-phase separator not only effectively improves crude oil quality by removing water and gas but also reduces equipment corrosion, ensuring the smooth operation of downstream processing systems. As industrial demands continue to evolve, the technology and application of three-phase separators are also constantly developing, making them an indispensable piece of equipment in the oil and gas industry. This article will delve into the working principle, operational procedures, process management, and applications of the three-phase separator, helping readers gain a comprehensive understanding of the operation and maintenance of this essential equipment.

Pre-Commissioning Preparations of Three-phase Separator



Before a three-phase separator is put into operation, a series of preparation steps must be completed to ensure the equipment operates reliably and safely. These preparations include inspecting key components like valves, instruments, pipelines, and confirming operational procedures to ensure each step adheres to standards.

1. Inspection of Valves and Instruments



Before commissioning, all valves and instruments should undergo a thorough inspection. First, check the valves for flexibility, ensuring they are free from rust, blockage, or jamming. The operation of all valves should be smooth, ensuring no leakage or failure to close during operation. Additionally, the accuracy of instruments like pressure gauges, level indicators, and thermometers must be verified to ensure they reflect the system's actual operating conditions.

2. System Pressure Testing



Pressure testing is a crucial step before operation. All pressure vessels and pipeline systems must be pressure tested to ensure they can withstand normal operating pressures and prevent leaks during operation. This test should strictly follow the relevant pressure vessel standards, especially before liquid feed is introduced, ensuring the reliability of each component, including joints and welds, which are prone to leakage.

3. Pipeline and Equipment Cleaning



The separator must undergo thorough cleaning before being put into service. Dust, oil residues, or other impurities may accumulate inside pipes and equipment during manufacturing and transportation, obstructing fluid flow. During cleaning, a cleaning agent should be used to clear the internal parts, ensuring unobstructed pipelines. Gas purging or water flushing may be used if necessary to ensure there are no blockages in the system.

4. Automation System Inspection



Three-phase separators are typically equipped with an automated control system that adjusts the separation process according to set parameters. Before startup, the automation system should be inspected to ensure it is functioning properly. Special attention should be given to systems controlling liquid levels, pressure regulation, and flow control to ensure accurate and responsive operation.

Startup Procedures of Three-phase Separator



Starting up the three-phase separator requires adherence to a strict operational process to ensure safe and efficient operation. The startup process is divided into several stages, each of which must be carefully followed.

1. Opening Control Valves



Before startup, ensure that the control valves are in the correct position. Open the pressure gauge control valve of the three-phase separator and adjust the system pressure to the appropriate working pressure. This step should ensure that the direction of each valve's opening is correct, avoiding operational issues that could lead to unnecessary complications.

2. Exhaust and Level Control



After startup, first open the exhaust valve at the top of the separator to expel air from the system, ensuring no air resistance inside. Simultaneously, check the opening of the upper and lower control valves on the level gauge to ensure the liquid level stays within the normal range, preventing overflows or dry operation of the equipment.

3. Checking Inlet and Outlet Pipelines



Next, open the inlet and outlet pipeline gates to ensure the pipelines are clear and unobstructed. Particular attention should be paid to the sealing of pipeline connections to avoid leaks. Additionally, confirm that the fluid within the pipeline meets operational requirements, such as temperature and pressure.

4. Control of Sewage Electric Valve



The opening of the sewage electric valve is a key step in the startup process. Adjusting the sewage valve's opening controls the discharge rate of sewage, preventing excessive or insufficient discharge. Operators should use the monitoring system to adjust the valve opening in real-time to ensure stable flow.

5. Water Injection and Leak Check



Open the inlet valve to inject hot water into the separator. During this step, carefully check for leaks at the equipment's connection points. If any leakage is found, immediately close the relevant valves and locate the leak for repair. During water injection, monitor the flow stability and level changes, ensuring that the liquid inside the equipment does not become problematic due to excessive flow rate.

6. Adjusting Level Control



Level control is crucial during operation. When the liquid level in the oil chamber begins to change, gradually close the sewage valve's front gate to maintain the oil chamber's liquid level within a reasonable range. Any fluctuations in liquid level could impact the separation effect, so constant monitoring is necessary.

7. Stopping Water Injection and Nitrogen Charging



Once the liquid level is controlled, close the inlet valve to stop water injection. Slowly open the exhaust valve to charge nitrogen into the separator. After nitrogen is introduced, check the gas emission concentration and ensure the nitrogen is evenly distributed inside the separator. Only when the nitrogen concentration reaches the standard should the exhaust valve be closed.

8. Checking Equipment Operation



As the separator enters stable operation, a thorough inspection should be performed on the equipment. Key operational data such as pressure, temperature, level, and flow rate must be monitored to ensure they meet the design specifications. Any abnormalities should be addressed immediately.

9. Controlling Oil-Water Interface



In the regular operation phase, open the control valves before and after the oil-water float ball valve and slowly open the inlet valve to introduce the oil-gas mixture into the separator. Once the liquid level stabilizes, adjust the float ball valve's opening to ensure optimal oil-water separation.

10. Monitoring Operational Records



After the equipment starts, operators should regularly record key operational data, such as level, pressure, temperature, and flow rate. These records should be logged at predetermined intervals (e.g., every 15 minutes or every two hours) for monitoring purposes.

Three-Phase Separator Working Process Flow



The operation of a three-phase separator mainly relies on the principle of separation to separate oil, water, and gas. The process flow is vital, as it directly impacts the efficiency and quality of separation.

1. Incoming Oil Treatment



All incoming oil first undergoes preliminary treatment in a free-water three-phase separator, where the use of demulsifiers is crucial. These chemicals break the emulsion state of oil and water, promoting their separation. The oil is then sent to a heat exchanger and typically heated to 70-75°C to prepare for further separation.

2. Separator Internal Operation



The internal working pressure of the separator is usually maintained between 0.15-0.20 MPa, with a liquid level control of 80-100 cm and a water level control of 100-120 cm. By adjusting the pressure differential at the inlet and outlet, optimal separation of oil, water, and gas is achieved.

3. Oil-Water Separation



After preliminary separation, oil-water separation is the key task for the separator. Using structures like settling chambers and corrugated plates inside the separator, the oil-water separation efficiency is significantly improved. The separated oil is usually further processed in a stabilization tower and flashed before being sent to crude oil storage, with water content reduced to below 0.8%.

4. Gas Separation



Gas separation is another important function of the separator. This is achieved through the difference in specific gravity between oil, water, and gas, as well as their interaction. The separated gas is sent to a gas recovery system for further processing before being discharged or utilized.

Operational Management of Three-Phase Separators



Proper management is essential to ensuring the long-term, efficient operation of a three-phase separator. During operation, operators need to regularly check, monitor, and adjust the system parameters to ensure stable performance.

1. Oil-Water Interface Management



Managing the oil-water interface directly influences the separation efficiency. Maintaining a stable interface is crucial during oil-water separation. Adjusting the oil-water interface based on the characteristics of the oil field ensures the separation process operates at optimal performance.

2. Emulsified Liquid Control



When low-water content oil enters the separator, the generation of emulsified liquids may reduce separation efficiency. Therefore, continuous monitoring of emulsification is necessary to avoid any negative effects on the separation process.

3. Use of Demulsifiers



Demulsifiers play a vital role in the separator by reducing the interfacial tension between oil and water, making it easier to separate them. Operators should add the demulsifiers according to the oil characteristics and processing volumes to ensure optimal separation performance.

Conclusion



The three-phase separator is an indispensable piece of equipment in the petroleum and natural gas industries. Its operating principles, steps, and process flows directly influence the efficiency and effectiveness of oil, water, and gas separation. With proper operational procedures and management practices, the three-phase separator can function efficiently and safely, providing reliable support for oilfield production. As oil and gas production technologies continue to evolve, the performance of three-phase separators will continue to improve, enabling them to better handle complex and changing operational environments and demands.
