Flash vessels are highly efficient energy-saving devices widely used in various industrial fields, including light industry, chemical engineering, metallurgy, building materials, and more. The core function of a flash vessel is to recover thermal energy through the flash evaporation process, significantly improving energy utilization efficiency while reducing energy waste. Flash vessels are characterized by their small footprint, high level of automation, and strong reliability, making them essential devices for energy conservation, emission reduction, and improving production efficiency.
Flash Vessel Principle and Function
The working principle of a flash vessel is based on the relationship between pressure and temperature in liquids and steam. When high-pressure saturated liquid enters the flash vessel, the rapid reduction in pressure causes part of the liquid to evaporate, separating the steam from the remaining liquid. This process is known as "flash evaporation." According to thermodynamics, when a liquid is subjected to a pressure below its boiling point, it quickly turns into steam, releasing latent heat. This allows the flash vessel to efficiently recover low-grade thermal energy.
The liquid in a flash vessel is typically overheated condensate or other types of waste heat water, with temperatures generally ranging from 100°C to 200°C. As the liquid enters the flash vessel, it undergoes rapid depressurization, causing part of the liquid to transform into steam. By controlling the pressure inside the flash vessel, the degree of vaporization can be adjusted to achieve efficient thermal energy recovery.
Advantages of the Flash Evaporation Process
Energy Saving: Flash vessels significantly reduce thermal energy consumption by reducing the moisture content in the liquid and converting low-temperature condensate into useful steam.
Environmental Benefits: The flash evaporation process recycles heat from wastewater, turning it into steam, which reduces the discharge of waste gas and wastewater, thus complying with environmental regulations.
Efficiency: Flash vessels can rapidly convert large volumes of liquid into steam, effectively improving production efficiency while maintaining low energy consumption.

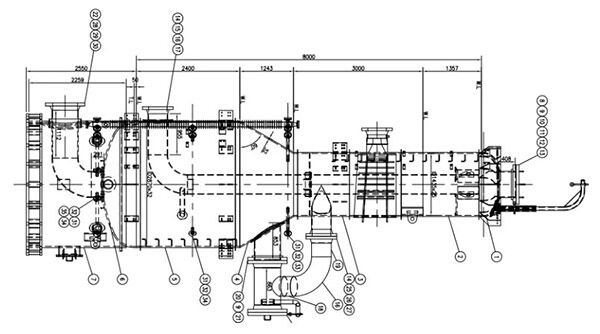

Flash Vessel Structure and Components
Flash vessels have a simple yet powerful design and typically consist of the following key components.
Vessel Body: The main part of the flash vessel, usually made from high-temperature-resistant and corrosion-resistant stainless steel to withstand high-pressure and high-temperature operating conditions. The size and structural design of the vessel must meet the needs of efficient flash evaporation and ensure even distribution of heat inside.
Inlet and Outlet Pipes: The inlet pipe delivers high-temperature liquid into the flash vessel, while the outlet pipe separates and discharges steam and the remaining liquid. The design of the outlet pipe ensures that the steam and liquid are separated and prevents mixing.
Steam Pipe: This pipe introduces overheated steam into the flash vessel, promoting the flash evaporation process by adjusting the internal pressure. The steam pipe must be designed to ensure that the flow and temperature of the steam entering the vessel are optimal for achieving the best flash evaporation effect.
Exhaust Pipe: The exhaust pipe discharges the steam generated by the flash evaporation process. It typically goes through condensation or other subsequent treatments to prevent excessive environmental pollution.
Separator and Control System: Flash vessels are equipped with efficient separators to separate steam from liquid. The control system adjusts parameters such as pressure and temperature to optimize the efficiency of the flash evaporation process.
Main Technical Features of Flash Vessels
Flash vessels possess several unique technical features that make them highly advantageous for industrial applications. The following are some of the key technical features.
1. Gas-Liquid Separation Technology
Flash vessels create a low-pressure environment that rapidly vaporizes the liquid, achieving gas-liquid separation. This technology effectively removes moisture and prevents liquid components from being present in the steam, ensuring high-quality steam. The efficiency of this gas-liquid separation significantly improves the recovery and utilization of thermal energy.
2. Energy Recovery and Reuse
Through the flash evaporation process, flash vessels recover low-grade steam and direct it to equipment that requires a heat source, such as boilers and heaters. This saves energy and reduces costs. Steam generated from overheated condensate can efficiently improve energy utilization, reduce energy waste, and promote resource recycling.
3. Temperature Control and Automation
Flash vessels are equipped with advanced automation control systems that precisely adjust key parameters like pressure, temperature, and flow rate. The intelligent control system allows operators to monitor the vessel's operating conditions in real time and adjust the operating mode as needed to ensure efficient and stable flash evaporation.
Applications of Flash Vessels
Flash vessels have a wide range of applications, especially in the following industries, where they show significant potential.
Waste Heat Recovery Systems: Flash vessels play a crucial role in boiler waste heat recovery. By recycling the hot water or waste heat condensate discharged from the boiler, flash vessels convert low-grade heat into usable steam, helping industrial enterprises reduce energy consumption.
Chemical and Metallurgical Industries: In the chemical and metallurgical industries, flash vessels are used for processes such as concentration, evaporation, and drying. Through efficient thermal energy recovery, they reduce production costs. They are particularly advantageous for handling high-temperature wastewater, effectively lowering the energy consumption of wastewater treatment.
Drying and Concentration: Flash vessels are used in the drying and concentration of wet materials, efficiently removing moisture through the flash evaporation process. This is commonly seen in industries such as food, pharmaceuticals, and cosmetics, improving production efficiency and reducing drying energy consumption.
Clean Production and Energy Conservation: Flash vessels help promote energy conservation and emission reduction in industrial production processes. Through efficient energy recovery and waste heat utilization, they reduce carbon emissions and energy waste in production, providing strong support for clean production.
Use and Challenges of Flash Vessels
Although flash vessels offer many advantages, they still face some challenges during operation. To ensure the efficiency and stability of the flash evaporation process, the following factors must be considered.
1. Material Property Differences
Different materials may exhibit varying vaporization characteristics during the flash evaporation process. Factors such as material sensitivity to heat, moisture content, and particle size can affect the flash evaporation efficiency. Therefore, operational parameters such as pressure, temperature, and feed flow rate must be adjusted according to the properties of the materials.
2. System Optimization and Maintenance
The efficient operation of a flash vessel requires regular system inspection and optimization. Operators must monitor critical parameters such as temperature and pressure to ensure stable equipment operation. Additionally, components like separators and pumps need regular maintenance to ensure long-term high efficiency.
3. Risks from High-Temperature Operation
Flash vessels typically operate in high-temperature and high-pressure environments, placing higher demands on the equipment's durability. Excessively high temperatures can damage the equipment or reduce its efficiency, so strict temperature control systems and high-quality heat-resistant materials are required to ensure safe operation.
Conclusion
As an energy-efficient device, the flash vessel plays a crucial role in many industries due to its unique flash evaporation technology and energy recovery capabilities. Its applications in heat recovery, drying, and concentration processes not only significantly enhance production efficiency but also effectively reduce energy consumption and environmental pollution. With precise parameter control and efficient gas-liquid separation, flash vessels ensure optimal energy utilization and high-quality material drying.
