Double Tube Sheet Heat Exchangers: Key Design and Applications
On this page

A double tube sheet heat exchanger is a specialized heat exchange device designed for specific operating conditions. Its innovative structure ensures high safety and reliability while effectively preventing the mixing of fluids between the tube side and shell side. By installing two tube sheets at one end of the heat exchanger, separated by a certain distance, this design not only achieves fluid isolation but also enhances performance and stability when dealing with high pressure differentials and corrosive media. This article discusses the fundamental aspects of double tube sheet heat exchangers and compares them with single tube sheet heat exchangers.

Design Concepts


When designing a double tube sheet heat exchanger, two main design concepts are considered: preventing fluid mixing and balancing pressure differentials.

1. Preventing Fluid Mixing


The core of this design is to ensure complete isolation of the tube side and shell side fluids. By adding a drain and flushing valve to the isolation chamber between the inner and outer tube sheets, accumulated liquid can be promptly discharged if the inner tube sheet leaks. This prevents the mixing of different fluids, ensuring the safe operation of the equipment.

2. Balancing Pressure Differentials


In some specific applications, the design concept of a double tube sheet heat exchanger involves filling a particular medium in the isolation chamber between the inner and outer tube sheets to reduce the pressure differential between the tube side and shell side. While this design does not completely eliminate leaks at the tube openings on the outer tube sheet, it reduces the pressure load on the equipment to some extent, improving reliability.

Structural Features

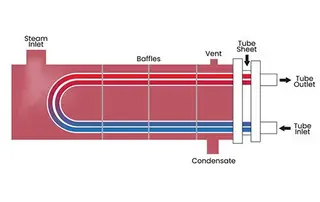

The key feature of a double tube sheet heat exchanger is its dual tube sheet design.

1. Outer Tube Sheet


Located near the end of the heat exchange tubes, it is referred to as the outer tube sheet or tube side tube sheet. It connects to the heat exchange tubes and the tube box flanges, also serving as the equipment flange, primarily to seal the tube side.

2. Inner Tube Sheet


Positioned near the end of the heat exchange tubes, it is called the inner tube sheet or shell side tube sheet. It connects to the heat exchange tubes and the shell side, serving to seal the shell side.

The specific distance between the outer and inner tube sheets forms an independent isolation chamber. This chamber can be either a non-pressurized enclosed space or an open structure. The primary purpose of this design is to provide an additional protective layer in case of fluid leakage, preventing the mixing of different fluids and ensuring the safe operation of the heat exchanger.

Applications


Double tube sheet heat exchangers are particularly suitable for the following scenarios.

1. Preventing Fluid Cross-Contamination


In some applications, the mixing of fluids between the tube side and shell side can cause severe chemical reactions or corrosion. For example, if water flows on the shell side and chlorine or chlorides flow on the tube side, a leak that causes mixing can produce highly corrosive hydrochloric or hypochlorous acids. These chemicals can severely corrode the equipment materials, posing significant safety risks. The double tube sheet design provides double isolation to effectively prevent such fluid mixing.

2. High Pressure Differential Situations


In certain processes, the pressure differential between the tube side and shell side can be very high. Traditional single tube sheet designs may struggle to handle the stress from such pressure differentials. In a double tube sheet heat exchanger, a specific medium can be introduced into the isolation chamber between the inner and outer tube sheets to balance the pressure differential. This not only reduces the pressure load on the heat exchanger but also improves safety and extends equipment life.

3. Special Process Requirements


When the mixing of fluids between the tube side and shell side can lead to combustion, explosion, catalyst poisoning, product contamination, termination of chemical reactions, or other serious consequences, a double tube sheet heat exchanger is an ideal choice. Its design prevents any form of cross-contamination or mixing of reactants, ensuring the safety of the production process and the stability of product quality.

Single vs. Double Tube Sheet Heat Exchangers


When selecting industrial heat exchangers, both double tube sheet and single tube sheet designs have their advantages. Here is a brief comparison of their design, maintenance, and operational safety aspects to help understand their applications and features.

1. Design and Maintenance


Double tube sheet heat exchangers use a fixed tube sheet structure, making it impossible to withdraw the tube bundle for cleaning, which complicates maintenance. In contrast, single tube sheet heat exchangers can use various structural forms, such as floating head and U-tube designs, which allow for the tube bundle to be withdrawn for cleaning, making maintenance easier. Additionally, in applications with significant temperature differences, double tube sheet heat exchangers typically include bellows to absorb thermal stress, while single tube sheet heat exchangers often use floating heads or U-tube designs to accommodate thermal expansion and contraction.

2. Operation and Safety


In terms of operation and safety, double tube sheet heat exchangers offer significant advantages. Even if the inner tube sheet leaks, the outer tube sheet provides additional protection to prevent fluid mixing between the tube side and shell side, greatly enhancing equipment safety and reliability. Additionally, double tube sheet heat exchangers generally require more stringent pressure testing, typically involving four pressure tests (tube side, shell side between the two inner tube sheets, and the chamber between the inner and outer tube sheets). In contrast, single tube sheet heat exchangers usually require only two to three pressure tests (e.g., tube side, shell side, and small floating head), resulting in slightly lower safety assurances.

In summary, the double tube sheet heat exchanger excels in preventing fluid mixing and handling high-pressure differentials, making it suitable for industrial applications with stringent safety and reliability requirements. Its design effectively prevents potential chemical hazards, while also enhancing equipment lifespan and operational efficiency.
