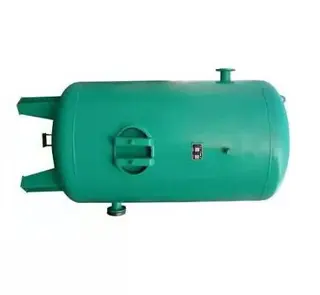

Common Heating Methods for Air Storage Tanks

Heating is a crucial process in the production of air storage tanks. By using different heating methods, the temperature of the gas inside the tank can be stabilized, which improves the quality and safety of the air storage tank. Below are several common heating methods and their characteristics, which will help better understand the suitability, advantages, and disadvantages of each method.

Direct Steam Heating Method

The direct steam heating method involves injecting saturated steam directly into the storage tank to heat the gas inside. This method is simple to operate, has high thermal efficiency, and requires relatively simple equipment, which reduces maintenance and operational complexity. The tank typically does not require frequent cleaning. Regularly opening the water tank's drain valve to remove sediment is usually sufficient, with cleaning every three years, which significantly lowers cleaning costs.
However, a potential issue with direct steam heating is the generation of condensate, which can affect the quality of the stored gas, especially in applications where high-quality storage is required, such as gas storage or the food industry. Therefore, this method is more suitable for applications that do not require strict control over moisture content, such as gas storage or agricultural diesel storage.

Tube Heater or Jacketed Heating Method

Tube heaters and jacketed heating methods heat the storage tank by passing steam or hot water through pipes or jackets surrounding the tank. This method ensures more even heating through thermal conduction, providing a stable heating effect with high thermal efficiency and a gentler heating process. It is particularly suitable for applications that require precise temperature control, especially in cases where a constant gas temperature must be maintained.
Compared to direct steam heating, tube heaters or jackets avoid introducing steam directly into the tank, reducing the condensation issue and offering better control over gas quality.

Heat Gas Circulation Heating Method

The heat gas circulation heating method works by continuously drawing some of the stored gas, heating it, and then returning it to the tank, mixing it with the cooler gas. This method uses mechanical agitation to promote even heating, ensuring rapid heat transfer. This approach not only improves thermal efficiency but also allows the gas inside the tank to reach the desired temperature in a short amount of time.
Typically, storage tanks are made of stainless steel to withstand high-pressure environments, making this method suitable for high-pressure storage scenarios, such as natural gas or liquefied gas storage.

Electric Heating Method

Electric heating methods include resistive heating, induction heating, and infrared heating. Each method has its own working principle and features, but they all share the advantages of simple equipment, high thermal efficiency, and ease of operation.

1. Resistive Heating

This method uses electrical resistance to generate heat and is suitable for smaller storage tanks, providing relatively uniform heating.

2. Induction Heating

This method uses electromagnetic induction to heat the object without direct contact, making it ideal for large-scale storage equipment or applications requiring precise heating control.

3. Infrared Heating

Infrared heating uses radiant heat to warm the gas inside the tank. It is simple in structure, efficient, and easy to use, making it an ideal choice for heating containers and transport vehicles.

Electric heating methods do not rely on steam or liquids, making them suitable for applications requiring higher cleanliness, such as chemical or food gas storage.

Hot Water Blanket Heating Method

The hot water blanket heating method uses a layer of hot water beneath the storage tank to transfer heat to the stored gas through the thermal conductivity of the water. The system is designed to ensure that sediment at the bottom of the water does not get disturbed and enter the tank, preventing any impact on the quality of the stored gas. This design helps improve the performance of water used for domestic or firefighting purposes.
This method provides stable, continuous heating by regularly replenishing hot water and replacing the cooling water to maintain the temperature of the water blanket. It is suitable for tanks that require continuous heating and do not have extreme temperature control requirements.

Conbined Heating Methods

In addition to the individual heating methods mentioned above, it is also possible to use a combination of heating methods, such as using both tube heaters and hot water blanket heating, to achieve more even and efficient heating. Combining different methods allows for utilizing the advantages of each to meet the needs of various applications.

Conclusion

Each heating method has its own strengths and weaknesses, and selecting the appropriate one depends on the specific requirements of the storage tank, the nature of the stored gas, and operational costs. Direct steam heating is simple and efficient but may affect gas quality due to condensate; it is best for applications with less strict moisture control. Tube heaters or jacketed methods provide stable heating and are ideal for applications requiring precise temperature control. Heat gas circulation and electric heating methods are suitable for high-pressure or special temperature control environments. The hot water blanket method is ideal for scenarios that require higher water quality and gas storage product quality. By carefully selecting the right heating method, the heating process can be optimized, improving gas storage quality while reducing maintenance and operational costs.
